A Comprehensive Guide to Grid Connected PV System

Grid-connected photovoltaic (PV) systems have emerged as a promising avenue in our quest for sustainable energy solutions. Also known as grid-tied or grid-connected solar systems, these setups allow individuals and businesses to harness solar power while staying connected to the conventional electrical grid.

In this article, we’ll look at the intricacies of grid-connected PV systems to offer a comprehensive overview for those contemplating a shift toward renewable energy.

Understanding Grid-Connected PV Systems

Grid-connected PV systems are designed to seamlessly integrate with existing electrical grids. Unlike standalone solar setups, these systems enable users to both utilize solar-generated electricity and draw power from the grid when needed.

This bidirectional flow ensures a constant and reliable power supply.

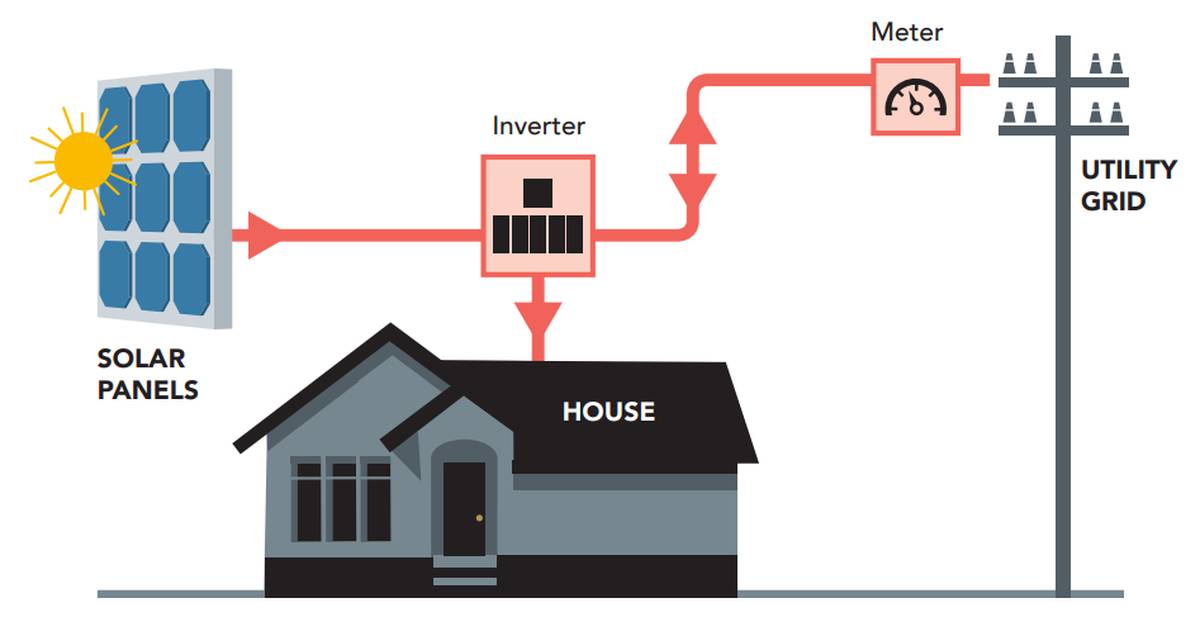

To function properly, a grid-connected PV system needs to have the following key components:

Solar Panels

At the core of any PV system are solar panels which convert sunlight into direct current (DC) electricity. Typically mounted on rooftops or ground structures, these panels maximize exposure to sunlight.


To make solar-generated DC electricity compatible with standard electrical appliances, an inverter is employed to convert it into alternating current (AC).

Net Meter

This is a distinctive feature of grid-connected systems that records the electricity generated by solar panels and the amount consumed from the grid. Excess energy can be fed back into the grid which allows users to earn credits or reduce their future electricity bills.

Monitoring System

To keep track of energy production and consumption, a monitoring system is often integrated to provide real-time data for users to optimize energy usage and identify potential issues.

Advantages of Grid-Connected PV Systems

Cost Savings

By generating personal electricity and potentially earning credits for excess energy production, grid-connected PV systems offer significant cost savings over time.

Environmental Impact

Solar power is a clean and renewable energy source that contributes to a reduction in greenhouse gas emissions and dependence on fossil fuels.


The connection to the grid ensures a stable power supply, even during cloudy days or periods of high energy demand.

Government Incentives

Many governments worldwide offer incentives, rebates, and tax credits to encourage the adoption of solar energy, making grid-connected PV systems more financially attractive.

Considerations Before Installation

If you plan to install a grid-connected PV system on your property, here are some things you should consider first:

Local Regulations and Permits

First and foremost, you have to understand local regulations and obtain necessary permits for grid-connected PV systems.

Roof Assessment

Next, you want to assess the structural integrity of your roof, considering factors like shading and orientation to optimize energy production.

Financial Analysis

Lastly, conduct a thorough financial analysis to determine the return on investment and payback period for your grid-connected PV system.


Grid-connected PV systems present a sustainable and economically viable solution to our escalating energy needs. By seamlessly integrating solar power with the traditional grid, you can contribute to a greener future while enjoying the benefits of reduced energy costs.

As technology advances and awareness grows, grid-connected PV systems are poised to play a pivotal role in shaping the energy landscape of tomorrow.
